Faven R8 Under Canopy Light and Accessories

Faven R8 Under Canopy Light and Accessories

Faven R8 Under Canopy Lights are the best way to improve the yield and health of your crop by supplementing traditional overhead lights with an additional 120 Watts of full-spectrum supplemental light. Under Canopy lights are a cheaper option to increase overall light output without significantly larger operational costs.

Under Canopy lights are designed to increase usable canopy depth ensuring that growth lower down on the plant receives sufficient light throughout their life, also decreasing the requirements of defoliation that traditional overhead lighting tends to require. Using Under Canopy lights helps increase harvest uniformity and yield by providing otherwise under-lit shoots sufficient light. This in turn speeds up plant maturity throughout the canopy.

The Faven R8 Under Canopy lights have a dimmable 120w internal driver that outputs with up to 2.9 umol/j efficacy. You can daisy chain up to 20 lights per power cable either butting the lights directly up to each other or by using link cords. To dim the R8's you connect the R8 Mini Controller (0-10v) via the RJ port into the first light to dim all the lights down across 9 separate intensity levels (1-9, with F being full power).

Faven R8 Under Canopy lights do require a timer to regulate light hours as the Mini Controller is designed purely for controlling the light intensity. Faven lights are IP66 rated with 5 year warranty and ETL, DLC, CE, FCC certified to ensure they are long lasting, durable supplemental lights.

Dimensions of R8 Lights and Height of Adjustable Stands

Dimensions of R8 Light- 1170mm x 74mm x 84mm
Height of Adjustable Stands- 8 inch (200mm), 10 inch (250mm) or 12 inch (305mm)

The Faven Lighting Power Cord is a 10 ft cable designed to work with both R6 and R8 lights.

The Faven 3 ft Lighting Jumper (link) Cable makes it possible to daisy chain up to 20 lights without them directly touching each other, primarily this is for use linking several rows of lights together or where rooms have unique dimensions.

The Faven R8 Mini Controller is a 0-10v dimming unit for those who want added control over their supplemental lights. Designed for both commercial and hobby growers it allows you to customize your light output requirements as and when it is required. The Mini Controller is plugged in via the RJ port on your first light and will dim all lights in sequence.

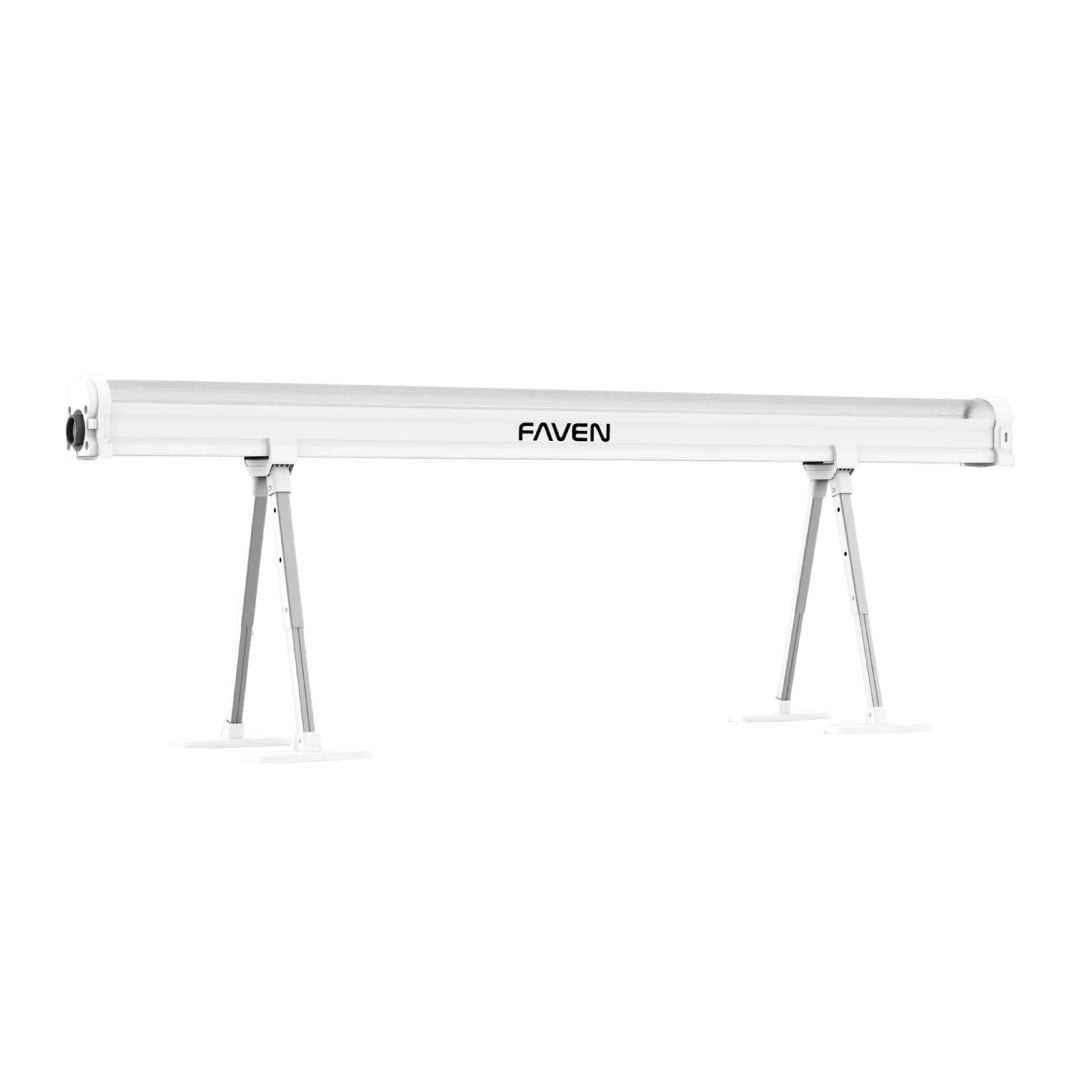

The Faven R8 Light and stand only provides those looking to add to existing R8 under canopy set ups additional supplemental light. If you are looking to add to an existing setup it may be worth getting an additional Jumper Cable to connect into your current setup. Included in the kit is; 1x R8 Under Canopy Light and 1x set of Adjustable Stands (2 stands).

The Faven R8 Starter Kit is the perfect solution for growers seeking to upgrade or modernise their current grow setup. This kit contains all the essential components to get you up and running with an under canopy light. Included in the kit is; 1x R8 Under Canopy Light, 1x set of Adjustable Stands (2 stands), 1x Mini Controller and 1x Power Cord.

The Faven R8 4 Light Complete Kit provides growers looking to trial or use under canopy lights on a larger scale than the starter kit all the necessary components to run and effectively control their new supplemental light kit. Included in the kit is; 4x R8 Under Canopy Lights, 4x sets of Adjustable Stands (2 stands per set), 1x Mini Controller, 1x Power Cord and 3x 3 ft Lighting Jumper (link) Cables.
