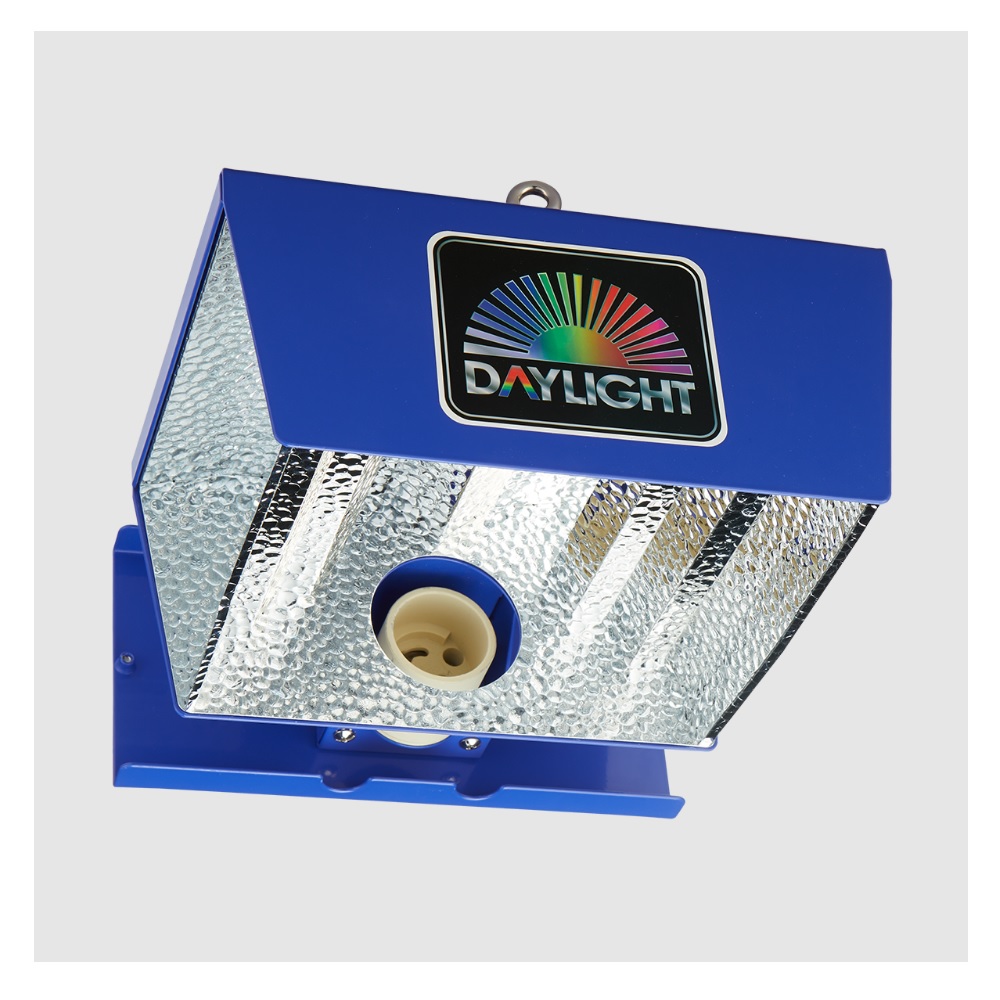

Maxibright Horizon CDM Reflector – Connect

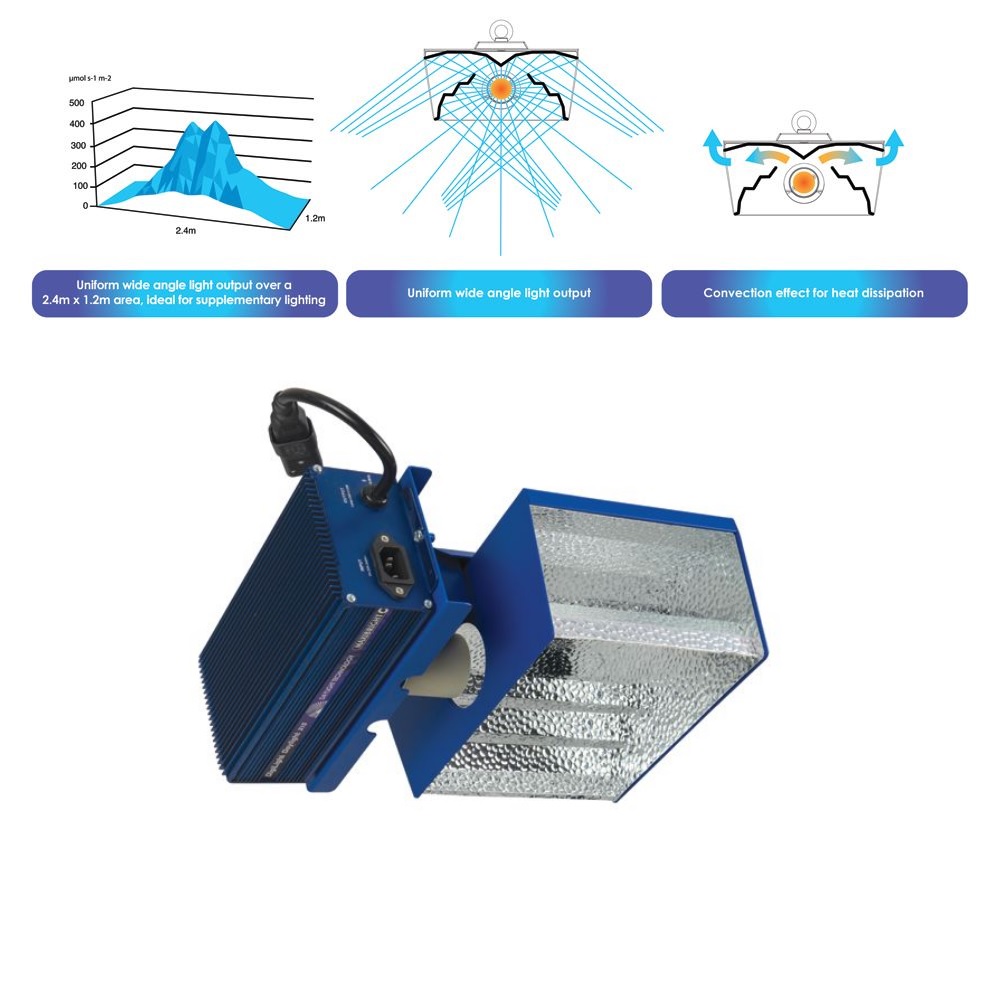

The unique design of the Horizon reflector will distribute light over an area of 1.2m x 2.4m and is manufactured from highly reflective aluminium for great light output, uniformity and diffusion.
The dual wing design also helps to dissipate heat and this version, the Connect, allows the ballast to be attached to the reflector to save space. If you decide that you would like to place the ballast outside of the grow area, then simply attach to the reflector with an IEC Extension Lead.

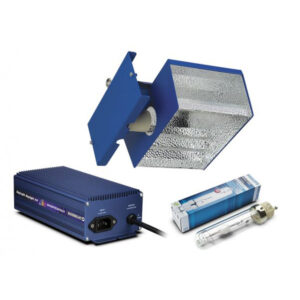

The Maxibright Daylight 315 Ballast is the ideal partner for this reflector especially in conjunction with Philips CDM/CMH 315 Watt Lamps.
The Horizon is perfect for supplementing HPS fixtures, ideally 1 Horizon between 2 HPS fixtures, or to cover a large amount of plants during the growth stage.

Dimensions and Coverage

180mm x 240mm x 110mm
1.2m x 2.4m – 4ft x 8ft coverage
Reflector weight – approx. 2.5kg, with ballast and lamp approx. 6kg

  • Sturdy, compact design
  • Ideal for supplementary lighting
  • Can attach to ballast
  • Super reflective material
  • Suitable for most 315w ballasts
Weight 5 kg
