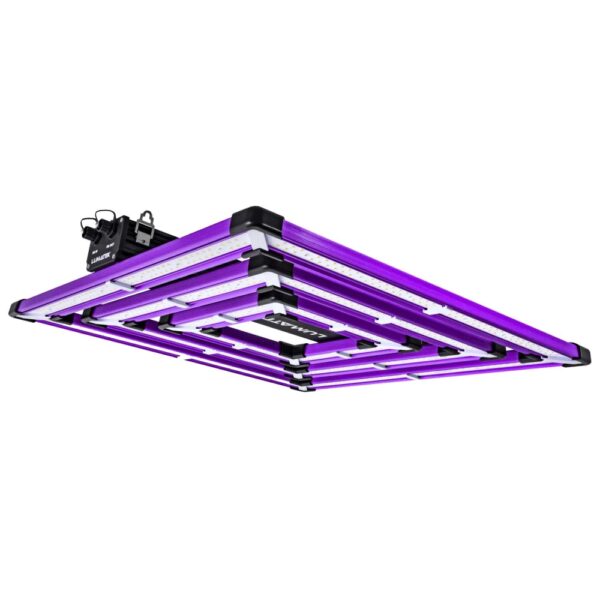

Lumatek ATS Pro LED Fixtures – Controllable,  up to 2.7 µmol/J

The higher specification Lumatek ATS Pro LED is a lightweight fixture producing heavyweight performance and yields, high levels of PPF of 816 µmol/s and a very high efficacy of up to 2.7 µmol/J for the 300 Watt version, covering perfectly up to 1x1m grow areas. The 200 Watt version has a PPF of 508 µmol/s and a Photon Efficacy (fixture efficiency) of 2.5 µmol/J, covering perfectly up to 80cm x 80cm grow areas.

Lumatek ATS Pro full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) sufficient to provide sole-source or supplemental grow lighting for propagation, vegetative and flowering growth periods of indoor-grown crops.

The fixture efficacy will vary depending on the Input Voltage used.

The array of the ATS Pro range create a uniform spread of light at short distance from the crop enabling good penetration of canopy without hotspots and excessive heat. The innovative heat sink and use of passive natural convection has eliminated the need for a fan, reducing noise output and significantly increasing the life span of the fixture as it has no moving parts.


For different cultivars, propagation and vegetative growth periods this agile fixture may be dimmed without losing efficiency. The high efficiency and low powered LED configuration reduces the temperature of the LEDs increasing the output and improving light maintenance.


ATS Pro LED Features

The new Pro line of ATS is built using high quality Lumatek controllable drivers and latest generation higher efficiency top bin White, Red & Far Red Diodes.

The upgraded diodes are now more evenly distributed across the whole length of the light bars resulting on a larger and more even light spread and footprint.

Other new features of this line include:
New IP65 rating;
Clear Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes and extra corrosion resistance;
And new Control capability with the Lumatek Control Panel Plus 2.0.


Full Spectrum

Lumatek LED grow light solutions use a blend of white, deep red & far red LEDs to produce a highly efficient light source calibrated to provide high intensity, stable and uniform output for optimal light absorption.

Previous generations of LED grow lights used a mixture of royal blue and deep red LEDs to target chlorophyll absorption peaks. Whilst these solutions worked adequately they missed out important spectra for quality plant growth, lacked penetration through dense canopies and provided poor visibility for inspecting and maintaining grow rooms.


Passive cooling


Lumatek’s innovative design and advancement in LED technology has produced a high powered LED grow light with passive convection cooling. This fan less design means no moving parts so Lumatek LED fixtures are extremely robust with a long life span and operate silently.


External Control

The ATS Pro fixtures can also be externally controlled with a Lumatek digital lighting controller (Digital Panel Plus 2.0) featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.

Tips


One of the key benefits of LED Lighting is less heat in the growing environment, this means fans are often extracting less air. This can help to keep humidity levels up and allow the use of smaller fans with less power consumption.


If the air in the grow room is not being exchanged as often, your plants may be getting less co2, a simple solution is to use ExHale CO2 Bags, or, for the more experienced grower, CO2 gas bottles and regulators can be used.





  • Now with up to 2.7 µmol/J efficacy
  • Controllable with Control Panel Plus
  • More light, less heat
  • Silent fan less operation
  • 3 year warranty
Weight N/A
Size

ATS Pro 200 Watt, ATS Pro 300 Watt
