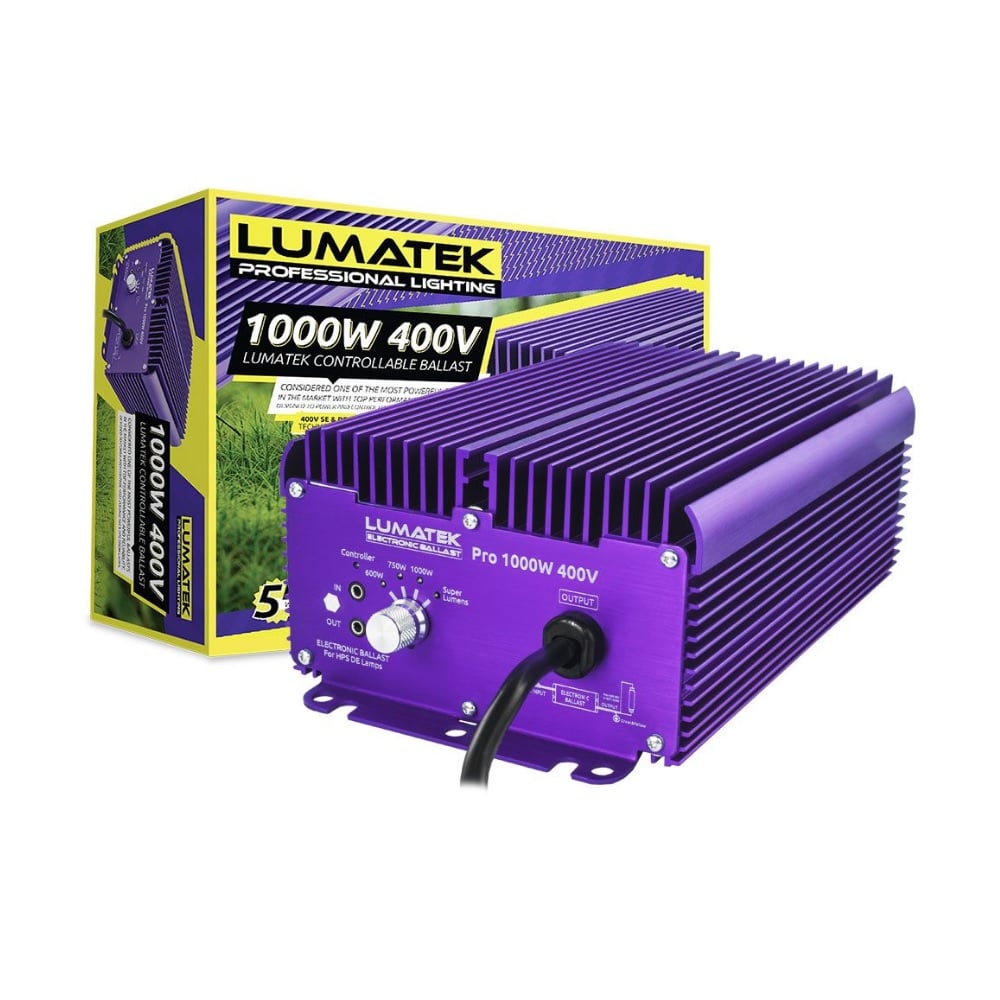

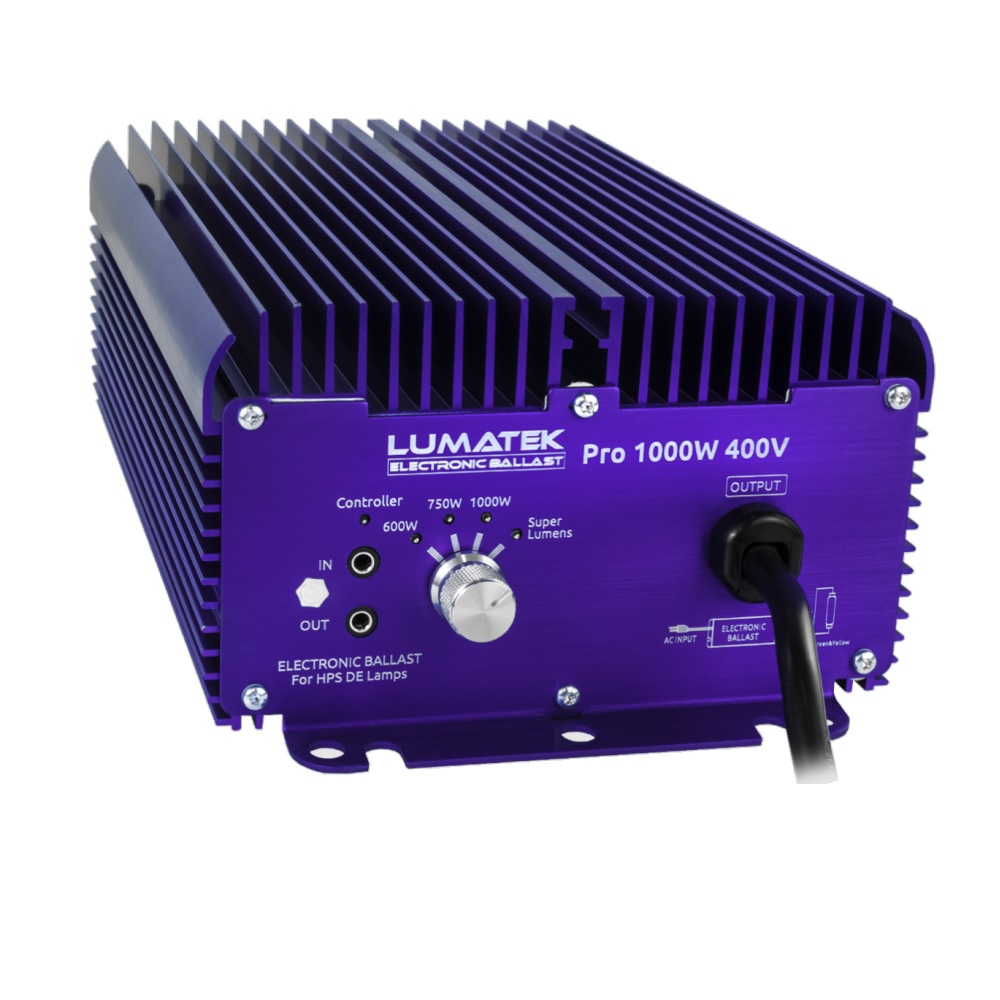

Lumatek Pro 1000 Watt 400 Volt Ballast – Controllable

This is our most powerful intelligent ballast, the 1000W which integrates the proven and reliable Lumatek technology and with an addition of Control capability.

The Lumatek Pro 1000W 400v Controllable has been developed to connect to 240V power supply and light 600/750/1000W 400V HPS grow lamps.

400V grow lighting is now standard in professional horticulture because of the extra PAR/PPF (grow light) produced with greater efficiency and lower energy costs. Improved PAR ensures a constant and uniform plant growth.


Developed to meet professional standards & the main requirements of growers:
• Additional PAR/PPF – up to 10% more grow light
• More light = more yield/revenue
• Improved PAR Light Output maintenance
• Highest System Efficiency
• High reliability
• Low energy costs
• Affordable price – little more than standard 240V equipment
• Connect to 240V power supply and light 400V Double Ended horticultural grow lights


Lumatek use the latest electronic components to improve performance & efficiency to reduce the cost of high-end professional equipment for the end user.

Lumatek Pro ballasts are tested and compatible with 400V DE HPS lamps from all the leading manufacturers including Phillips. Comparison testing has demonstrated up to 10% more PAR/PPF than standard horticultural lamps with improved PAR maintenance levels.

Lumatek have a proven reputation for reliability and performance. The Pro 400V series provides affordable professional grow lighting solutions for the indoor grow market.

The new addition of Control capability allows you to easily monitor and regulate your grow room environment (Lighting timming, sunrise/sunset, digital 1% dimming, etc). By simply connecting the Lumatek Digital Panel (sold separately) into the TRS “Link” port on your controllable ballast.


Use


These ballasts can be used with standard contactor timers or the Lumatek Control Panel Plus 2.0 to give more control options.

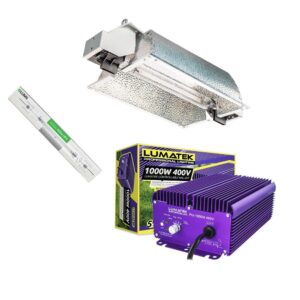

Lamps and reflectors need to be the 400v double ended type for these ballasts, LUMii Double Ended 400 volt Reflectors and LUMii 1000w 400v DE HPS Lamps are a good choice or the Gavita DE Lamps for a higher quality lamp.


The total cable length between the Pro 1000W 400V Ballast and reflector should not exceed 5 meters.

Specification

Size L x W x H(mm): 318 x 166 x 96
Weight (Kg): 4.9
Case: Graduated Fin Aluminium
Dimming (W): 600W – 750W – 1000W – Super Lumens (115%)
Mains Supply Voltage: 240V 50Hz
Input Input Current Max (A): 5.1
Input Power (W): 1200
Output Power (W): 1150
Operating Frequency (KHz): 125
Power Factor: 0.99
THD(%): <10
Efficiency(%): 96
Mains Voltage Range(V): 175 – 275
Lamp: 600W, 750W, 1000W HPS

Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
EMI suppression certified



  • 400 Volt for intense light
  • Fully controllable
  • Dimmable
  • For double ended lamps
  • Tried and tested
Weight 1 kg
[]
