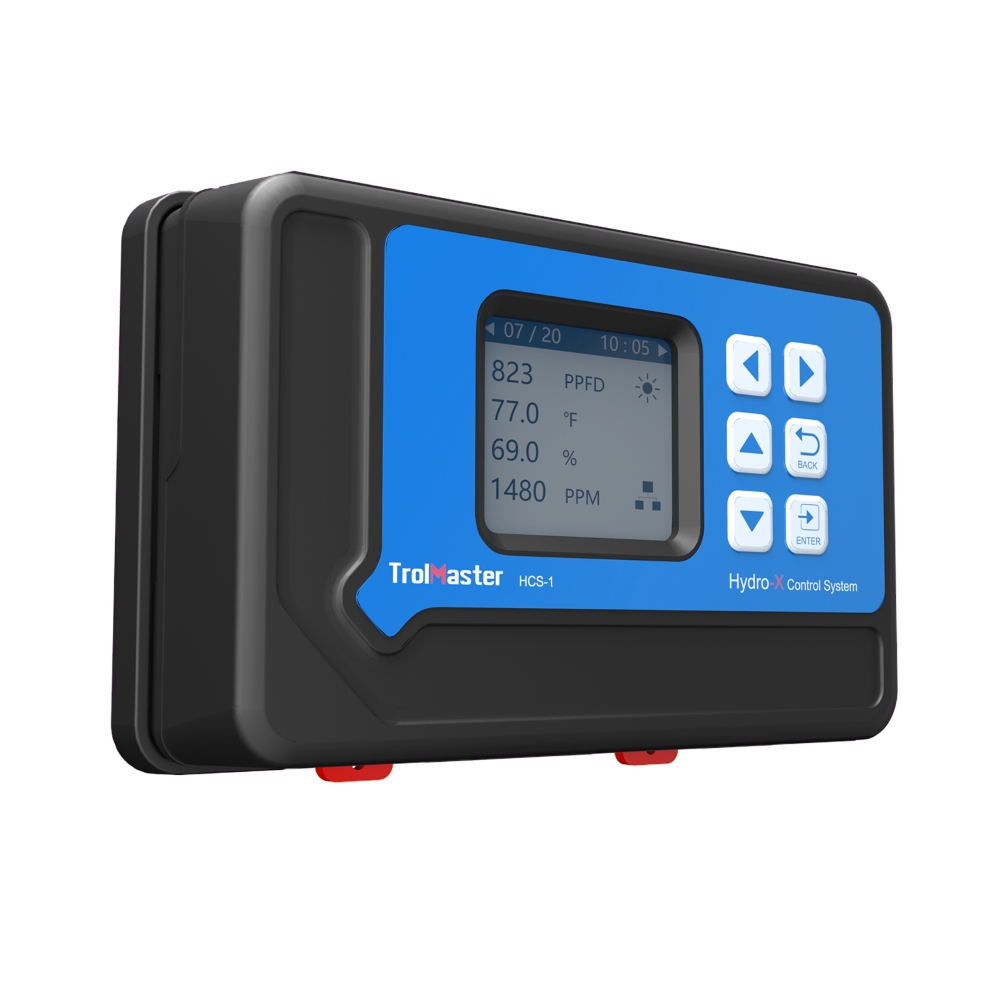

TrolMaster Hydro-X Control System HCS-1

TrolMaster Hydro-X Control System HCS-1

TrolMaster’s Hydro-X control system is a professional-grade single zone environmental system, with a fully customizable modular design allowing growers to choose the factors they wish to control within the grow room. The Hydro-X system can control most grow lights (check lighting connections to see if your lights are applicable), HVAC systems, mini-split air conditioners, commercial dehumidifiers and humidifiers, as well as CO2 generators or regulators.

The Base Unit (HCS-1) comes with a temperature, Humidity and Photocell sensor (MBS-TH), and a RJ12 Cable set for Light Connection.

The Hydro-X can be controlled using the TrolMaster App allowing the user to access all of the settings and alerts on the system from anywhere at anytime. However it does require an internet connection for this feature, most internet services including land-based and cellular internet are compatible. HCS-1 can also record the data coming from the sensors onto a CSV file, to utilise this feature you must insert a MicroSD card 32GB or less into the MicroSD slot on the bottom of the controller. Once the card is inserted, the unit will automatically store data for later viewing.

Specification
Input Voltage: 100-240VAC, 50/60Hz
Certifications: ETL/FCC
Degree of Ingress Protection: IP20
Maximum distance to Device to be Connected: 1000 meters
3-in-1 (Temp/Humid/CO2) Sensor: Max 1pc per set
CO2 Sensor: Max 1pc per set
Smoke Detectors: Max 5pcs per set
Temp Device Stations: Max 4pcs per set
Humid Device Stations: Max 2pcs per set
CO2 Device Stations: Max 2pcs per set
Program Device Stations: Max 9pcs per set
