GAS EC Speed Controller

GAS EC Speed Controller

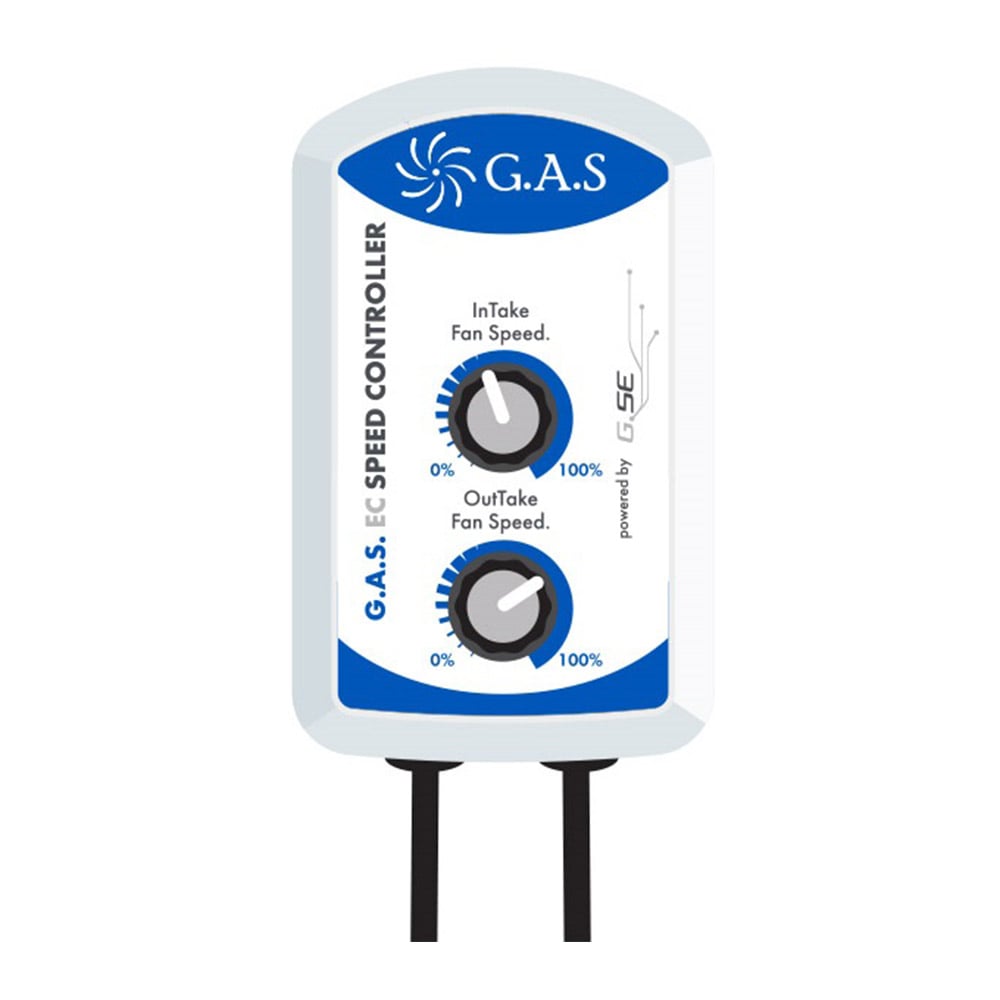

The G.A.S EC Speed Controller is the perfect way to manually control the speeds of two EC fans, it is actively powered by the fan, no need for a seperate power lead.

• Precisely set your intake fan speed

• Balance your fans to achieve the required negative pressure

• Control the maximum speeds of two fans

• Precisely set your outtake fan speed

• Plugs directly into EC fan range

• 12 month warranty

Please note: the EC Speed Controller is not thermostatic.

Use
Rhino EC Fans connect using the 3.5mm jack to 3 pin female adaptor that comes with the Rhino EC Fan, then use the male to male active cable(Cable Pack 8) to connect this to the controller.
Phresh Hyper EC Fans connect using the the cable and connector that comes with the Hyper EC Fan, this is connected to a GAS controller to Phresh Hyperfan Connecter(Cable Pack 16), which in turn is connected to the controller.
If using Systemair Revolution EC Fans, the male to male active cable(Cable Pack 8) connects the fan straight to the controller.
If you are using 2 fans, you will need connectors/cables for both.
This controller can be used with most EC Fans that utilise 0-10V communication.
If in doubt, please don’t hesitate to call our knowledgeable, friendly staff to check compatibilty.

Contents
1 x GAS EC Speed Controller
1 x GAS 5m Male to Male Active Cable(as in Cable Pack 8).
1 x Velcro Mounting Pad
Instructions
