Lumatek Pro LED Driver Remote Use 5m Extension Cables

Available in 2 versions:

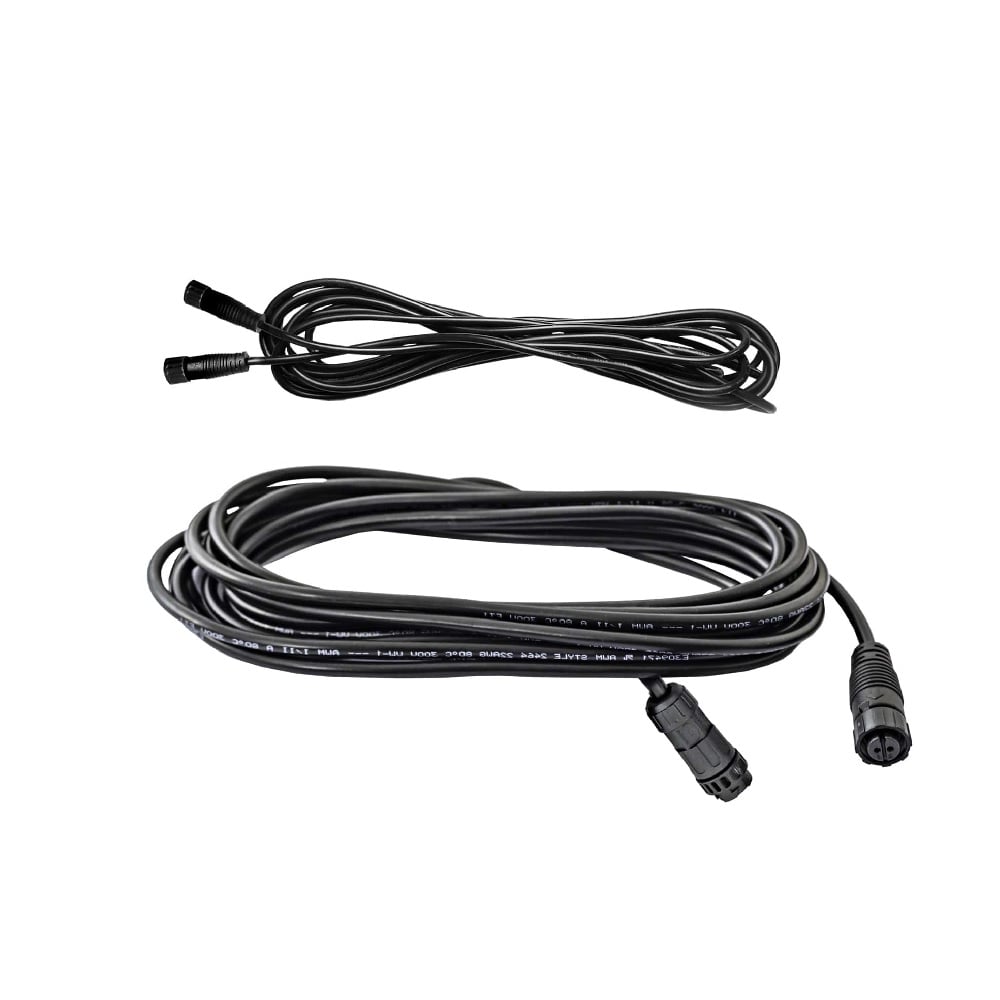

For Lumatek Pro LED’s up to 600 watts – LUMM0016 (1 x Driver Extension, 1 x Dimming Extension)

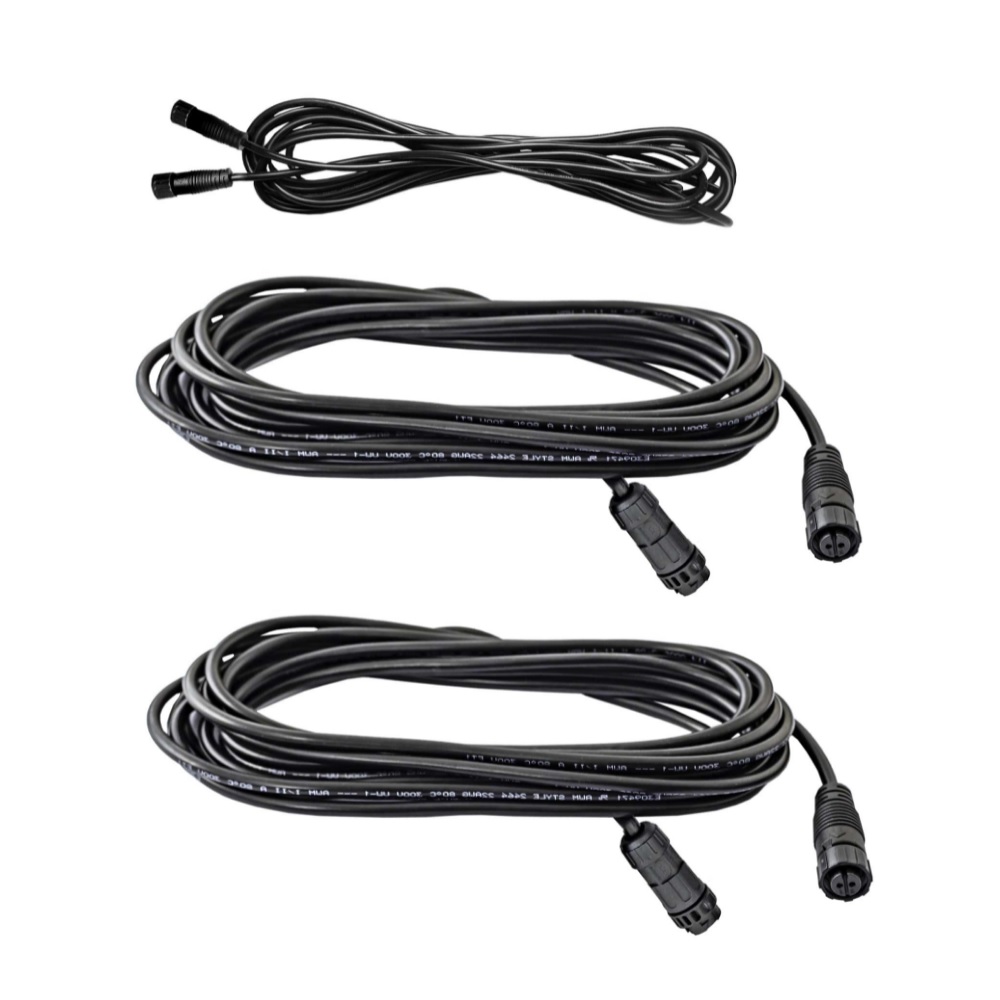

Fro Lumatek 1000 watt Pro and Extreme – LUMM0031 (2 x Driver Extension, 1 x Dimming Extension)


One of the key benefits of modern, high quality LED lighting is that they produce less heat over a given area than traditional lighting technologies.
These 5 metre long extension cables allow the driver to be located away from the grow room or tent,  removing even more heat, reducing the weight of the fixture or just moving the driver to a more convenient location.


Use


Combined with the 4 metre power cable the light fixture can be located up to 9 metres from the plug socket.
The dimmer remains attached to the fixture not the driver.
These cables are compatible with the latest Lumatek LED Pro and Extreme Models.
If you have older models they may require a different cable, please contact us if you are unsure or require advice.


Installation


1: Disconnect and remove the driver from the fixture

2: Connect the Extension Power Cable to the power out socket on the driver and then to the power in connection on the fixture

3: Connect the Extension Dimming Cable to the dimmer input on the driver and then to the dimmer output connection on the fixture.


Technical Specifications


5m Extension Power Cable for LED driver:

M19-2 Self-locking male and female injection moulding with 5m extension cable
Wire Gauge: UL SJTW 2x16AWG 300V 105 C
Technical/Test Data:
– Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs
– The withstand voltage between outer cover and electrode is 500 VAC, 2mA, test time is 3S, no breakdown or leakage current occurs
– Insulation Resistance:[email protected]
– Temperature Resistance:105 C
– Working temperature: -20 C -105 C
– Storage temperature: -25 C -105 C
– IP65
– Comply RoHS


5m Extension Dimming Cable for LED driver:

M19-2 Self-locking male and female injection moulding with 5m extension cable
Wire Gauge: UL 21996 3×22AWG 300V 105 C  VW-1
Technical/Test Data:
– Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs
– The withstand voltage between outer cover and electrode is 500 VAC, 1mA, test time is 3S, no breakdown or leakage current occurs
– Insulation Resistance:[email protected]
– Temperature Resistance:105 C
– Working temperature: -20 C -105 C
– Storage temperature: -25 C -105 C
– Comply RoHS

  • Allows Driver to be removed from the growing area
  • 5 Metres long
  • For even less heat
  • Pro version for up to 600w fixtures
  • Pro/Extreme version for 1000w fixture
Weight N/A
Model

Pro up to 600 Watt (2 Cables), Pro/Extreme 1000 Watt (3 Leads)

[]
