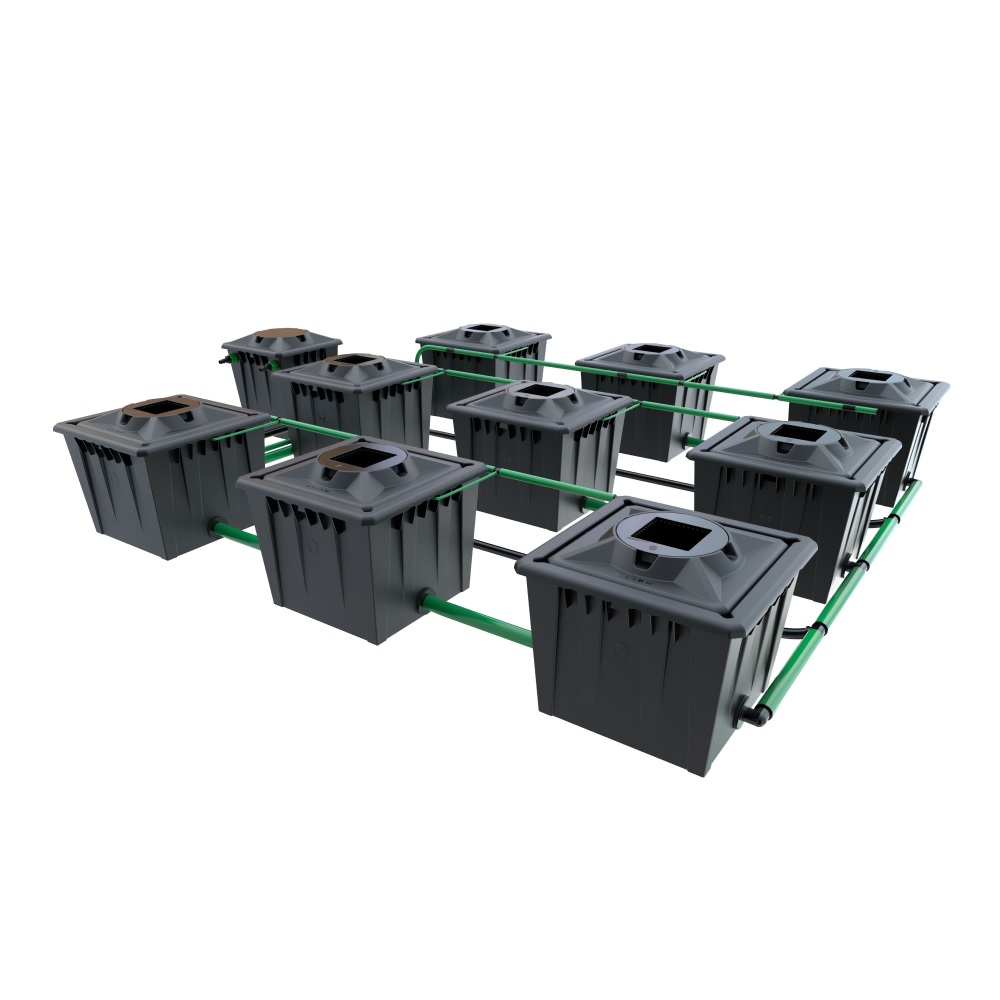

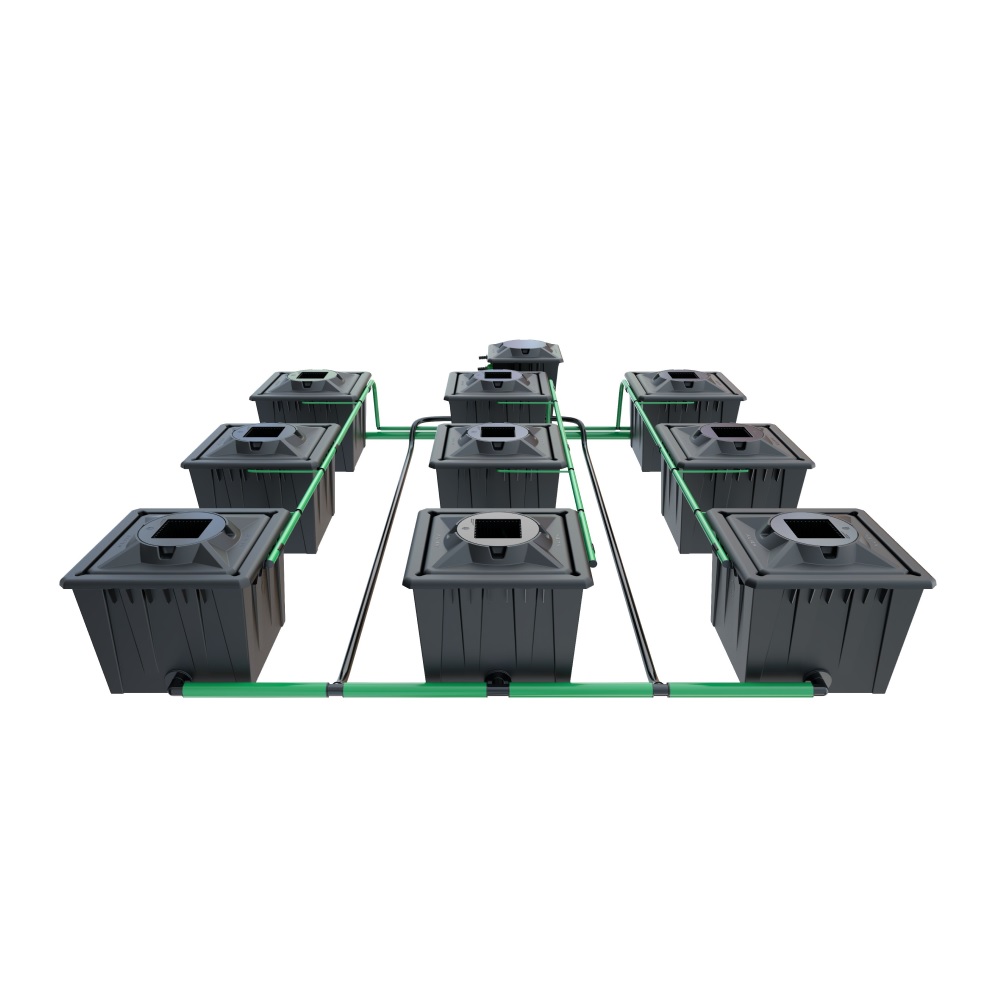

Alien RDWC Black Series 36 Litre – Recirculating Deep Water Culture System
*Water Tank and Air Pumps not included


Simply plugin and grow with this next generation RDWC system. Growing top-quality plants indoors has never been so effortless, combining our ground-breaking technology with the classic deep water culture method.
Recirculating Deep Water Culture is a method used to grow plants with roots submerged in a highly oxygenated nutrient solution.
By using the Alien RDWC hydroponic system, you can optimise maximum growth potential. The super oxygenated nutrient solution is constantly recirculating around the system. The pump creates a water current that draws the solution through the pots, mixing the nutrients. This current also delivers vital nutrients to the roots, optimising root health and increasing nutrient uptake efficiency. Importantly, PH and EC levels are maintained continuously due to the high volume of water contained in the system.
Available in various sizes and layouts, the Alien RDWC, recirculating deep water culture system provides fast vegetation time, high plant yield and reduced growing time.

Use

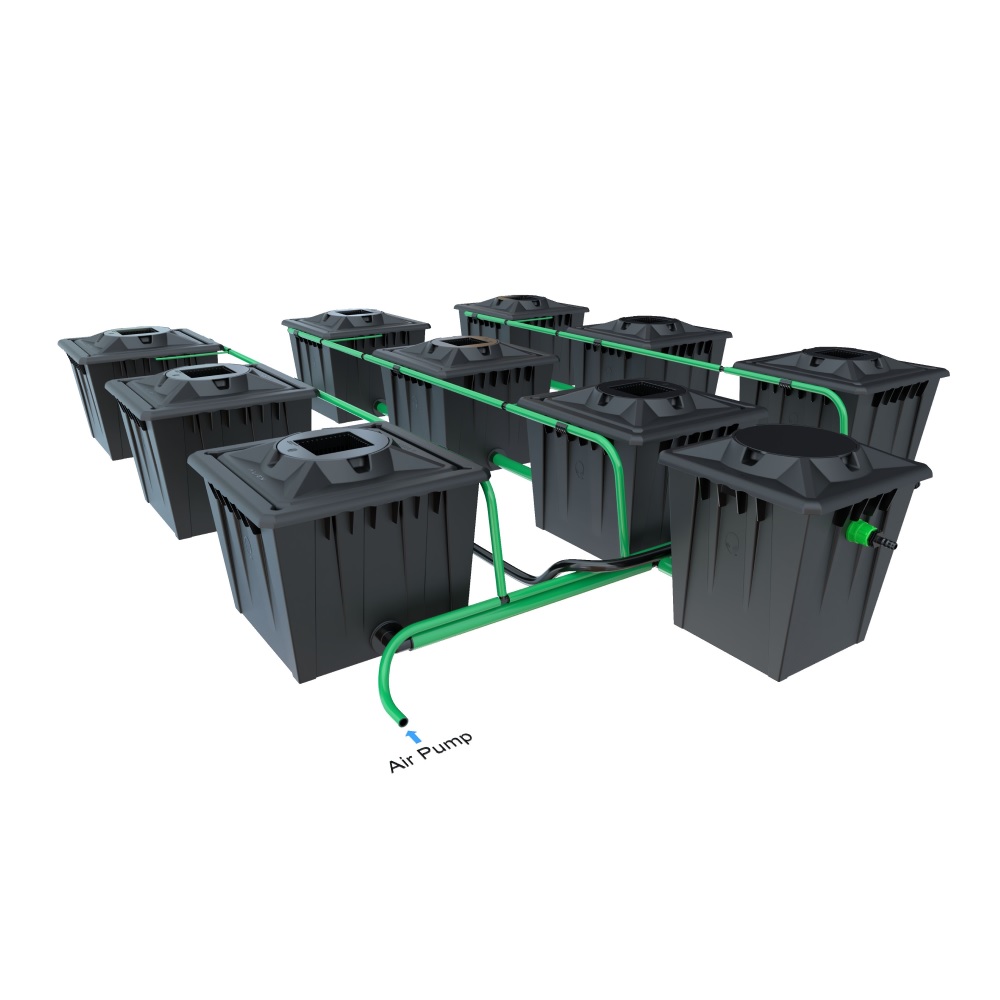

The RDWC hydroponic system works using Air Rings to increase oxygen delivery to the plant’s roots submerged in the nutrient-rich water.
The use of a water chiller is highly recommended, maintaining the nutrient solution at 18-20C will help to keep oxygen levels higher than warm water and helps to prevent root infections and problems.
With a large volume of nutrient solution in the system, the only thing you need to do is maintain the PH and EC levels and plan your next crop.
Air pumps and Water Chillers are not included but a selection are available here and here.
Water tanks are not included.

Planting
In a Deep Water Culture system plants are normally raised in a 3 inch(75mm) rock wool block before being transplanted to the mesh pot, clay pebbles are added to the mesh pot, the block is placed on top and extra clay pebbles are placed around the side for support.
When the plants are transplanted to the system they will need to be water gently from the top until the roots have made there way into the nutrient solution.

Installation
The RWDC hydroponic system fittings are threaded and secured with rubber washers and nuts, making system installation and relocation easier. Heavy-duty clips situated on the sides of the pots elevate the airlines off the floor. All RDWC systems come with factory-fitted chiller fittings on the side of the header, making chiller installation simple.

Recommended Tank Size, Air Pumps, Chillers and more info

number of pots water tank air requirement air pump water chiller minimum footprint without water tank maximum footprint Chiller model System volume
4 100l 40l/min 1x aco-9820 300l 1.3m x 0.9m 1.55m x 1.17m HC-300A 125l
6 100l 60l/min 1x aco-9820 300l 1.7m x 0.9m 2.3m x 1.17m HC-300A 175l
8 100l 80l/min 1x aco-9820, 1x aco-9810 300l 2.2m x 0.9m 3m x 1.17m HC-300A 225l
9 100l 90l/min 1x aco-9820, 1x aco-9810 300l 1.7m x 1.35m 2.3m x 1.9m HC-300A 250l
10 100l 100l/min 2x aco-9820 500l 2.65m x 0.9m 3.4m x 1.17m HC-500A 275l
12 100l 120l/min 2x aco-9820 500l 1.7m x 1.8m 2.3m x 2.7m HC-500A 325l
15 250l 150l/min 2x aco-9820, 1x aco-9810 500l 2.65m x 1.35m 3.4m x 1.9m HC-500A 400l
16 250l 160l/min 3x aco-9820 500l 2.2m x 1.8m 3m x 2.7m HC-500A 425l
18 250l 180l/min 3x aco-9820 500l 3m x 1.35m 4.5m x 1.9m HC-500A 475l
21 250l 210l/min 4x aco-9820 1000l 3.6m x 1.35m 5.25m x 1.9m HC-1000A 550l
24 250l 240l/min 4x aco-9820 1000l 3m x 1.8m 4.5m x 2.7m HC-1000A 625l
28 250l 280l/min 4x aco-9820 1x aco-9810 1000l 3.6m x 1.8m 5.25m x 2.7m HC-1000A 725l
32 400l 320l/min 5x aco-9820 1x aco-9810 1000l 4m x 1.8m 6m x 2.7m HC-1000A 825l
36 400l 360l/min 6x aco-9820 1000l 4.5m x 1.8m 6.75m x 2.7m HC-1000A 925l
48 400l 480l/min 8x aco-9820 2000l 5.6m x 1.8m 9m x 2.7m HC-2000A 1225l

  • Perfect for larger plants
  • Offers fast, vigorous growth
  • Minimal waste
  • Maximise growth potential
  • 36 Litre Pots
Weight N/A
Size

28 Pots, 4 Pots, 6 Pots, 8 Pots, 9 Pots, 10 Pots, 12 Pots, 15 Pots, 16 Pots, 18 Pots, 21 Pots, 24 Pots, 32 Pots, 36 Pots, 48 Pots

[]
