Female Duct Connectors
💳 10% Digital Discount 🚚 Free Next Working Day Delivery on Orders Over £50*Original price was: £3.65 – £6.50.£3.29 – £5.85Current price is: £3.29 – £5.85.
Female Duct Connectors

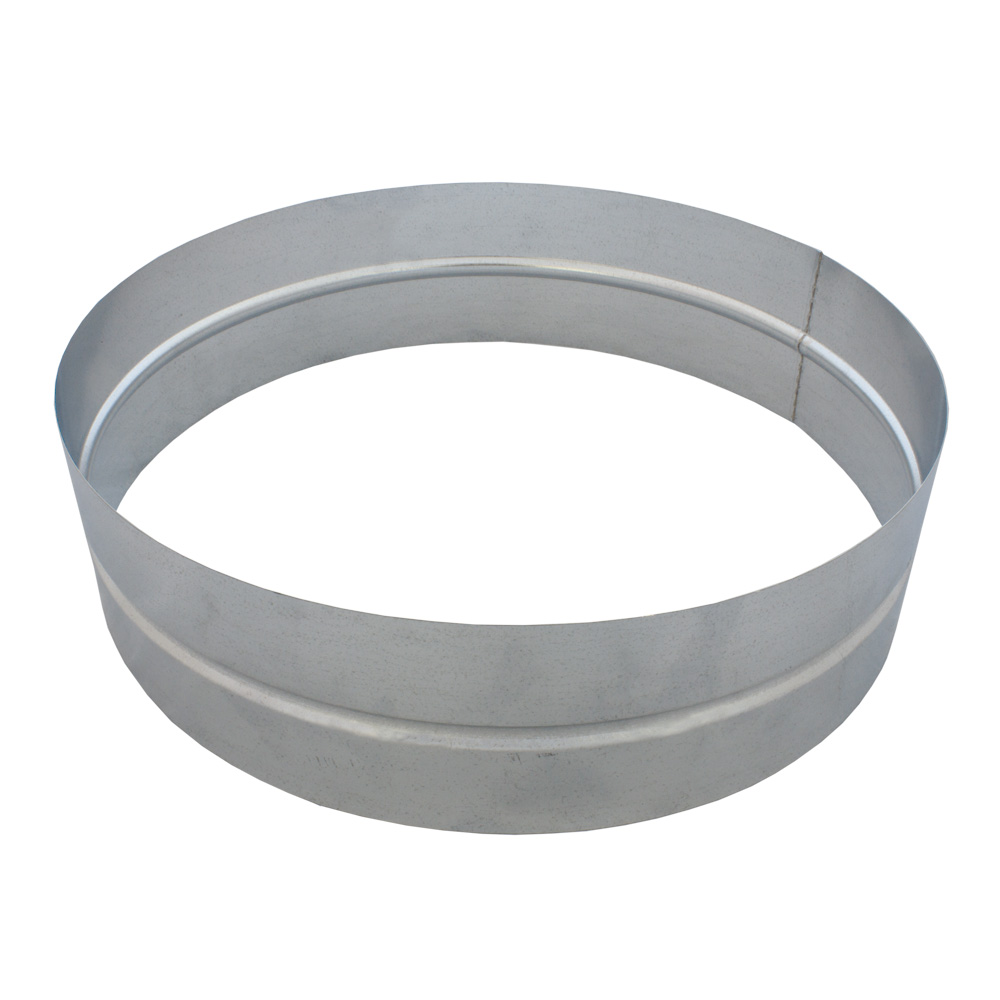

Metal Work - Female Ducting Connector
Zinc-plated mild steel female duct connectors to join 2 male ducting fittings such as bends and reducers.
Commonly used as part of an air extract ductwork for kitchen or bathroom extractor fans, tumble dryers or cooker hoods.
Also used in hydroponic in-line ventilation systems and air conditioning systems.
Comes with rolled edge for safer handling and improved alignment.
How to use
The connector has a seem running around the middle of it allowing you to put one piece of tin in one half of the connector and put another piece of tin the other half of the connector, hence allowing you to join two pieces of tin work together nice and tidily.
Note: A female duct connector sits over the top of the pieces of tin work you are joining – the middle seam is indented (goes in).
|
SIZE |
A |
B |
C |
D |
|---|---|---|---|---|
|
4" |
77mm |
100mm |
99mm |
34mm |
|
5" |
77mm |
127mm |
125mm |
35mm |
|
6" |
78mm |
152mm |
149mm |
36mm |
|
8" |
79mm |
202mm |
199mm |
35mm |
|
10" |
120mm |
254mm |
250mm |
55mm |
|
12" |
119mm |
319mm |
317mm |
56mm |
Please note:
While we endeavour to provide the most accurate measurements we can, to maintain stock levels we source metalwork from various suppliers and these dimensions may vary slightly.
These dimensions are approximate and should be taken as a guide, please call if you require an exact dimension for your project.
- Can be used to reduce filter size with reducers
- Enables you join 2 pieces of tin together
- Can be used on wall spigots
- Available from 4inch to 14inch
| Weight | N/A |
|---|---|
| Size |
4 Inch (100mm) ,5 Inch (125mm) ,6 Inch (150mm) ,8 Inch (200mm) ,10 Inch (250mm) ,12 Inch (315mm) ,14 Inch (355mm) |
