Move masses of air quickly and powerfully with the Rhino Ultra EC Fan.
Using state of the art EC technology, the fans can be controlled from 0 to 100% speed with no humming and buzzing. Controlling the fan is simple with the speed controller which is included. If you want more control, you can use adaptors to connect to any EC GAS controller.
Use
Rhino Ultra EC Fans come complete with a basic dimmer type speed control that allows the fan speed to be adjusted manually, without the buzzing associated with AC Fans.
For complete control, the Rhino Ultra Smart EC Fan Controller will allow thermostatic control of up to 4 Rhino EC Fans, the Smart EC Fan Controller takes its power from the fans so that it doesn’t require a power supply.
Specifications
Ultra EC Fan 4 Inch(100mm) – 275 m3/h
Dimensions TBC
Weight 1.1kg
Maximum speed: 5000 RPM
Maximum airflow: 275 m3/h
Static pressure: 334Pa
Noise level: 56.8dB(a)
Fan size: 100mm – 4 Inch
Impeller: Mixed flow
Motor: EC motor
Power: 18 Watt
IP rating: IPX2

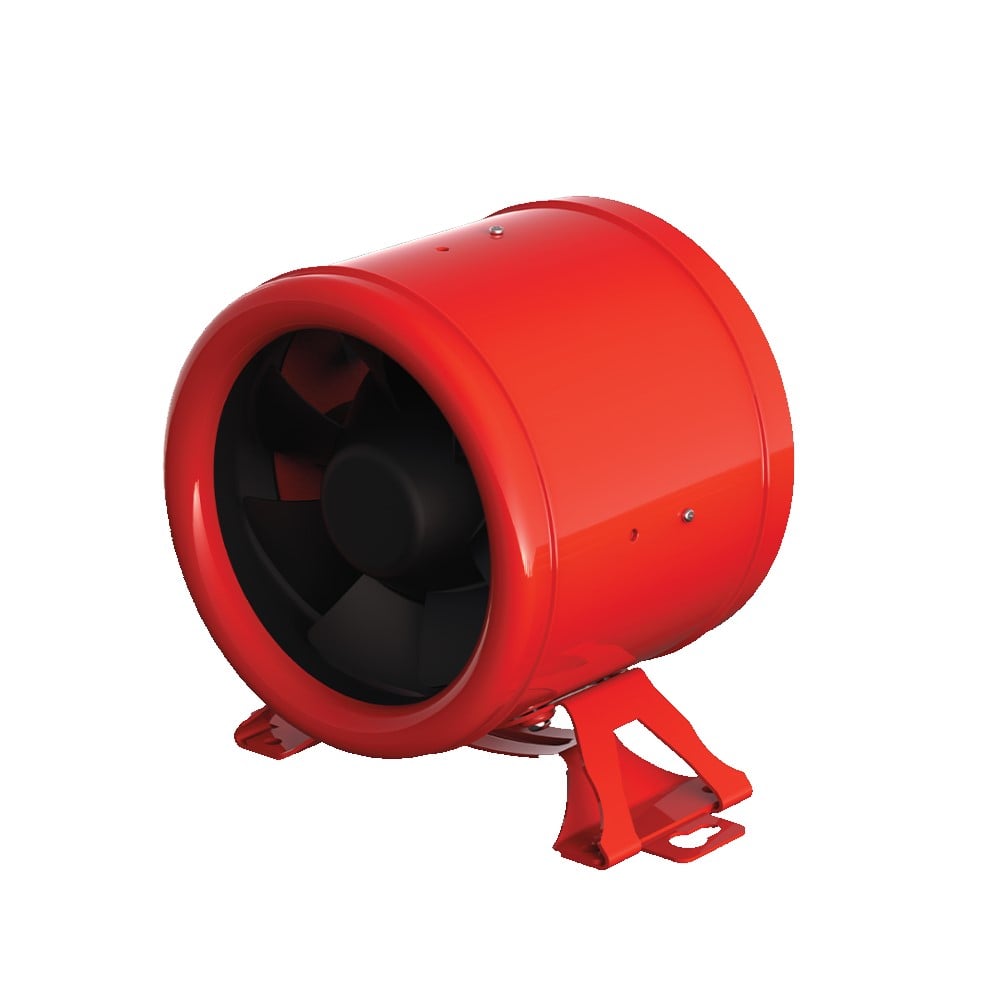

Ultra EC Fan 5 Inch(125mm) – 280 m3/h
Dimensions – TBC
Weight 1.1kg
Maximum speed: 5000 RPM
Maximum airflow: 280 m3/h
Static pressure: 350Pa
Noise level: 54.4dB(a)
Fan size: 125mm – 5 Inch
Impeller: Mixed flow
Motor: EC motor
Power: 20 Watt
IP rating: IPX2
Ultra EC Fan 6 Inch(150mm) – 594 m3/h
Dimensions – 165mm x 155mm(diameter)
Weight 1.6kg
Maximum speed: 5000 RPM
Maximum airflow: 594 m3/h
Static pressure: 500Pa
Noise level: 60dB(a)
Fan size: 150mm – 6 Inch
Impeller: Mixed flow
Motor: EC motor
Power: 40 Watt
IP rating: IPX2
Ultra EC Fan 8 Inch(200mm) – 1205 m3/h
Dimensions – 220mm x 205mm(diameter)
Weight 2.5Kg
Maximum speed: 3800 RPM
Maximum airflow: 1205m3/h
Static pressure: 520Pa
Noise level: 62dB(a)
Fan size: 200mm – 8 Inch
Impeller: Mixed flow
Motor: EC motor
Power: 75 Watt
IP rating: IPX2
Ultra EC Fan 10 Inch(250mm) – 1808 m3/h
Dimensions – TBC
Weight 3kg
Maximum speed: 3200 RPM
Maximum airflow: 1808 m3/h
Static pressure: 510Pa
Noise level: 65dB(a)
Fan size: 250mm – 10 Inch
Impeller: Mixed flow
Motor: EC motor
Power: 150 Watt
IP rating: IPX2

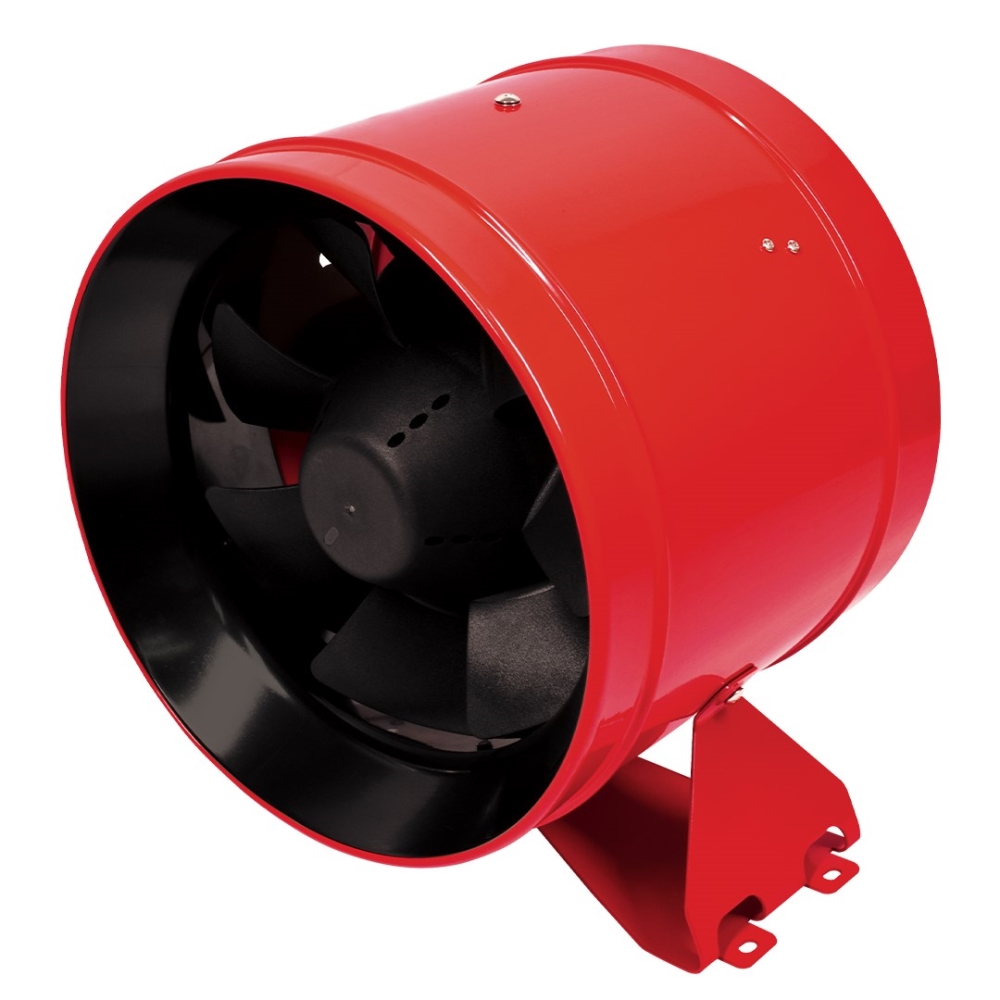

Ultra EC Fan 12 Inch(315mm) – 2987 m3/h
Dimensions – TBC
Weight 6.5kg
Maximum speed: 3000 RPM
Maximum airflow: 2987 m3/h
Static pressure: 677Pa
Noise level: 78dB(a)
Fan size: 315mm – 12 Inch
Impeller: Mixed flow
Motor: EC motor
Power: 320 Watt
IP rating: IPX2
- Speed controller included
- High air flows at high pressure
- Compatible with all GAS EC controllers
- Sealed steel body
- Lower power consumption
