GAS EC1 Single Fan Controller

GAS EC1 Single Fan Controller

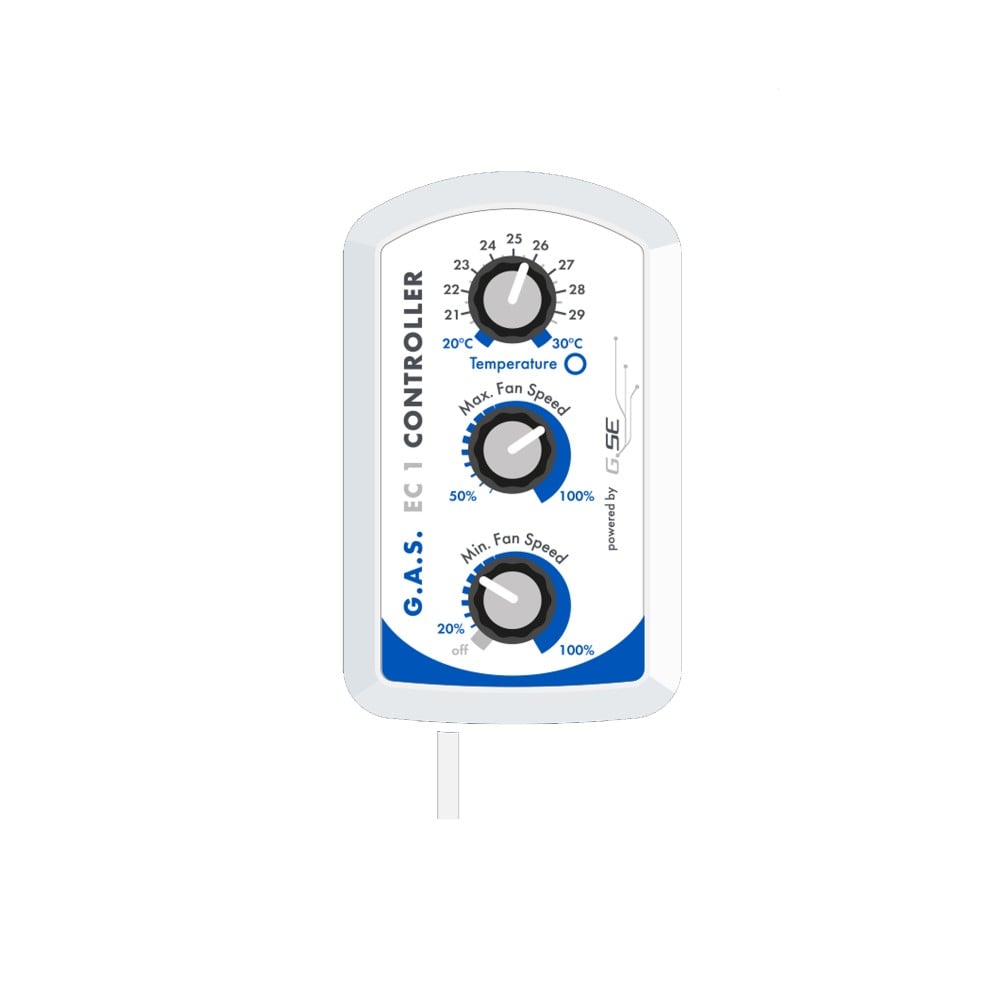

The GAS EC1 thermostatic speed controller is the perfect way to control your outtake EC fan.
The EC1 Controller has a minimum and maximum speed control and is powered from the fan, meaning there is no need for a power pack.

Use
Rhino EC Fans connect using the 3.5mm jack to 3 pin female adaptor that comes with the Rhino EC Fan, then use the male to male active cable(Cable Pack 8) to connect this to the controller.
Phresh Hyper EC Fans connect using the the cable and connector that comes with the Hyper EC Fan, this is connected to a GAS contoller to Phresh Hyperfan Connecter which in turn is connected to the controller.
If using Systemair Revolution EC Fans, the male to male active cable(Cable Pack 8) connects the fan straight to the controller.
This controller can be used with most EC Fans that utilise 0-10V communication.
If in doubt, please don’t hesitate to call our knowledgeable, friendly staff to check compatibilty.

Contents
1 x GAS EC1 Controller
1 x GAS 5m Male to Male Active Cable(as in Cable Pack 8).
1 x Velcro Mounting Pad
Instructions

Features
Temperature control your fan
Set maximum fan speed to reduce running costs and reduce noise
Set minimum fan speed to keep air fresh and CO2 rich
Plugs directly into EC fan range
12 month warranty
