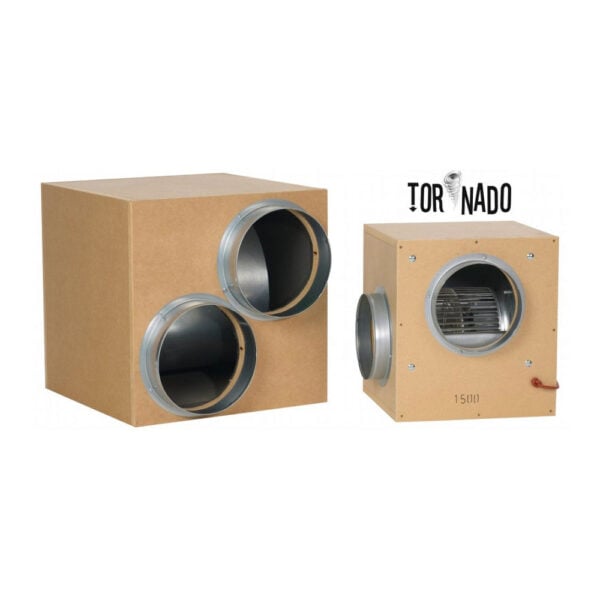

Tornado MDF Box Fans with Torin-Safin Motors


The original and best wooden box fans on the market, these fans use high end Torin Safin squirrel cage fan motors, MDF box enclosures and are lined with soundproof acoustic foam.


If you require your fans to be as quiet as possible while still moving large volumes of air, Tornado Box Fans are the ultimate choice.


Tornado are the Official distributers for the Torin-Safin fans so if anyone knows how to manufacture box fans, its Tornado!


These fans are built as a right angled design, this allows the fan to work at maximum efficiency and allows for installation in the corner of  room. 12 Inch fans can be built as a straight through on request.


Available in various sizes and power outputs to suit all growrooms and tents.


As Tornado fans are manufactured in the UK, we can supply custom versions to order


Fan Specs


6inch (150mm) – 1000
Airflow 1000 m3/h
Current 1.1 amps
Power consumption 230w
Maximum Noise Level 53.2db
Dimensions 40cm(Height) x 40cm(Width) x 40cm(Depth)
Weight 15.5kg


6inch (150mm) – 1500
Airflow 1500 m3/h
Current 1.6 amps
Power consumption 330w
Maximum Noise Level 62.1db
Dimensions 40cm x 44cm x 40cm
Weight 16.7kg


8inch (200mm) – 1500
Airflow 1500 m3/h
Current 1.6 amps
Power consumption 330w
Maximum Noise Level 62.1db
Dimensions 40cm x 44cm x 40cm
Weight 15.7


10inch (250mm) – 1500
Airflow 1500 m3/h
Current 1.6 amps
Power consumption 330w
Maximum Noise Level 62.1
Dimensions 40cm x 46cm x 43cm
Weight 16kg


10inch (250mm) – 2500
Airflow 2500 m3/h
Current 2.5 amps
Power consumption 530w
Maximum Noise Level 64.2
Dimensions 47cm x 52cm x 51cm
Weight 26kg


10inch (250mm) – 3250
Airflow 3250 m3/h
Current 5.7 amps
Power consumption 1255w
Maximum Noise Level 66.2db
Dimensions 47cm x 52cm x 51cm
Weight 27.4kg


10inch (250mm) – 4250
Airflow 4250 m3/h
Current 6 amps
Power consumption 1255w
Maximum Noise Level 72.5db
Dimensions 53cm x 52cm x 55cm
Weight 31.7kg


12inch (315mm) – 3250
Airflow 3250 m3/h
Current 5.7 amps
Power consumption 1255w
Maximum Noise Level 66.2db
Dimensions 47cm x 52cm x 51cm
Weight 27.1kg


12inch (315mm) – 4250
Airflow 4250 m3/h
Current  6 amps
Power consumption 1255w
Maximum Noise Level 72.5db
Dimensions 53cm x 52cm x 55cm
Weight 31.4kg


12inch (315mm) 2 Intakes – 4250
Airflow 4250 m3/h
Current  6 amps
Power consumption 1255w
Maximum Noise Level 72.5db
Dimensions 62cm x 74cm x 62cm
Weight 39kg


  • Torin-Safin Fan Motors
  • MDF Soundproofed Box
  • Various sizes and power outputs
  • Custom versions available
  • Extremely quiet
WeightN/A
Size

6 Inch (150mm) – 1000m3h, 6 Inch (150mm) – 1500m3h, 8 Inch (200mm) – 1500m3h, 10 Inch (250mm) – 1500m3h, 10 Inch (250mm) – 2500m3h, 10 Inch (250mm) – 2500m3h – Straight Through, 10 inch (250mm) – 3250m3h, 10 Inch (250mm) – 4250m3h, 12 Inch (315mm) – 3250m3h – Single Outlet, 12 Inch (315mm) – 3250m3h – Straight Through, 12 Inch (315mm) – 4250m3h, 12 Inch (315mm) – 4250m3h – 2 Intakes
